Fork Left >> CPCD45

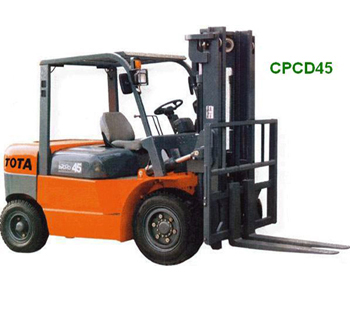

product01 Model : CPCD45

- Max lifting height:3000mm
- Rated load:4.5t
- Engine model:R4108
- Mast height:2350mm.


 Model  Unit  CPCD45
 Load capacity  Kg  4500
 Load center  Mm  500
 Overall Length(with fork)  Mm  4290
 Overall Length(without fork)  Mm  3110
 Overall Width  Mm  1480
 Overall Height  Mm  2290
 Lateral fork adjustment    300-1380
 Mast height (fork lowered)  Mm  2350
 Overall weight  Kg  6640
 Fork size L*W*T  Mm  1070*150*50
 Overhand (Front/Rear)  Mm  545/540
 Min ground clearance  Mm  170
 Engine type    Diesel
 Engine model    R4108
 Engine power  kw/rpm  59/2400
 Engine torque  N.m/rpm  280/1600~1800
 Wheel base Mm  2000
 Wheel thread  Mm  1180/1190
 Tyre size (front)    3.00-15-18PR
 Tyre size (rear)    7-12-12PR
 Max lifting height  Mm  3000
 Max. height fork raised  Mm  4200
 Tilting angles (forward-backward)    6°/ 12°
 Lifting speeds(with/without load)  Mm/s  500/520
 Max lowering speeds(with/without load)  Mm/s  550/540
 Free lift  Mm  170
 Max Driving speeds(with/without load)  Km/h  18.5/25
 Min turning radius  Inside  Mm  200
 Outside  Mm  2465
 Max grade ability (with/without load)  %  27/20
 Min. right angle channel width  Mm 3345





-
