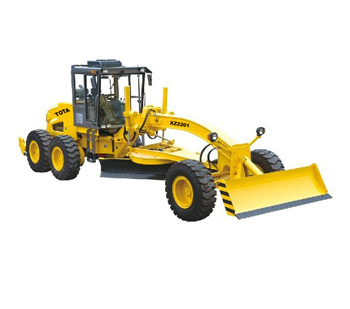

XZ2201

- Engine model:6CTA8.3-C240
- Rated power:179kw/240HP
- Blade width:4270mm
- Operating weight:17000kg

Type		Unit	XZ2201
Mass of entire machine (without attachment)		kg	17000
Load of front axle		kg	5000
Load of rear axle		kg	12000
Front and rear axle base		mm	6628
Wheel base of medium and rear wheels		mm	1542
Wheel base		mm	2150
Minimum ground clearance		mm	410
Minimum turning radius		m	8.4
Maximum traction force		KN	≮90
Climbing ability		°	≥20
Pressure of working hydraulic system		MPa	18
Control pressure of transmission box		MPa	1.4-1.7
Front axle steering angle		°	±45
Front axle inclined angle		°	±17
Front axle swinging angle		°	±15
Articulated steering angle		°	±25
Forward	ⅠGear	Km/h	5.0
	ⅡGear	Km/h	8.7
	ⅢGear	Km/h	11.4
	ⅣGear	Km/h	19.3
	ⅤGear	Km/h	23.9
	ⅥGear	Km/h	39.0
Backward	ⅠGear	Km/h	5.0
	ⅡGear	Km/h	11.4
	ⅢGear	Km/h	23.9
Shovel blade	Minimum height of ground clearance	mm	480
	Maximum ground depth	mm	500
	Inclined angle	°	90
	Adjustment scope of scraping angle	°	36-66
	Rotary angle	°	360
	Length	mm	4270
Engine	Model		6CTA8.3-C240
	Rated rotational speed	rpm	2200
	Rated power	Kw/hp	179/240
Drive part	Model		6WG200
	Tyre pressure	MPa	0.26
Outer size of basic type(length X width X height		mm	9450X2595X3390
