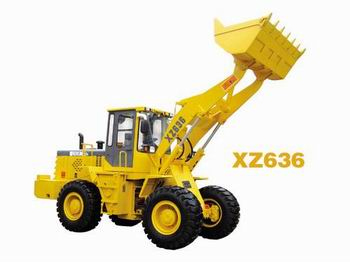

Wheel Loader >>XZ636/XZ636L


product01 Model : XZ636/XZ636L

- Standard bucket capacity:1.7m3
- Rated load:3.0t
- Operating weight:10.0±0.5t
- Engine power: 92KW

BRIEF INTRODUCTION
1- Quipped with Deutz TD226B-6 diesel engine, which is of high power reserve,excellent performance and reliability.
2- With single-turbine,three-elements hydraulic converter and fixed shaft power shift transmission(forwrd4 reverse 2 ),the product matches rationally, is powerful and efficient.
3- Fully hydraulic steering system with load sensing, decrease the loss of power and enhance the work efficiency.
4- Articulated frame,turn radius is small.
5- Z-bar loader linkage is capable of high breakout force and high dump height.
6- All-wheel,dual-line,disc-caliper-type brakes,rear mounted airreservoirs,ensure safety and reliability.
7- Quenched integral cutting edge bucket, more strength, better wearing resistance and long life.
8- New ,sound insulated ,air pressurization cab with optional air conditioner provides excellent visibility and operator's station.


 Dimension    XZ636 XZ636L

Length (Bucket on the ground)

mm

6800±30

 7200±30

Width

mm

2250±30

 2250±30

Height

mm

3220±20

 3220±20

Max. dumping height

mm

2870±20

3200±15

Dumping reach

mm

975 ±15

1020±30

Performance







Operation weight

Tons

9.9±0.3

10.1±0.3

Bucket capacity

m3

1.7

 1.7

Rated load

Tons

3.0

 3.0

Max. traction force

KN

75

 75

Turning angle

°

 35±1

  35±1

Wheel base

mm

2750 ±10

 2750 ±10

Wheel track

mm

1800 ±10

 1800 ±10

Bucket width

mm

2360 ±20

 2360 ±20

Min. ground clearance

mm

370 ±10

 370 ±10

Engine model



Deutz TD226B-6

 Deutz TD226B-6

Engine Rated power

KW

92

 92

Engine Max. torque

N·M

500

500

Engine Displacement

L

6.234

 6.234

Max. climbing gradient

°

28

 28
Max. breakout force  KN  120.6  120.6
No. of shift (forward/reverse)    4/2  4/2
Traveling speed
Traveling speed   Forward gear km/h   8
 Forward gear  km/h 13.5   13.5
 Forward gear km/h   25  25
 Forward gear km/h   36   36
 Reverse gear km/h  9.5   9.5
 Reverse gear km/h   30  30
Fuel tank capacity   L 108
Hydraulic tank capacity  138
Lifting time
 Hydraulic cycle time 11
Tire    17.5-25-16PR


OPTIONAL EQUIPMENT:
1- Loose material bucket 2.2m3
2- cool & warm type A/C, warm -wind type, Pre-heating system, Radio
3- Various implements log fork loader(XZ636J), side-dump loader(XZ636C), high-dump loader(XZ636L).
4- Joystick controller



-
