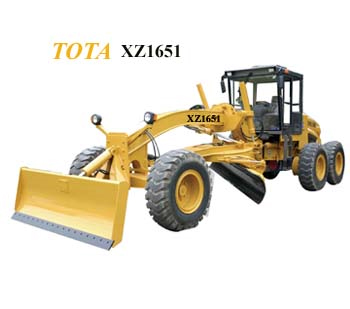

Motor Grader >> XZ1651
Model ： XZ1651
- Engine:Cummins 6BTA5.9
- Rated power:128kw/175hp
- Blade width:3810mm
- Operating weight:14800kg
| Type | Unit | XZ1651 | |
|
Mass of entire machine (without attachment) |
kg |
14800 | |
|
Load of rear axle |
kg |
10500 | |
|
Minimum turning radius |
m |
7.7 | |
|
Maximum traction force |
KN |
≮90 | |
|
Climbing ability |
° |
≥20 | |
|
Pressure of working hydraulic system |
MPa |
18 | |
|
Control pressure of transmission box |
MPa |
1.4-1.7 | |
|
Front axle steering angle |
° |
±45 | |
|
Front axle inclined angle |
° |
±17 | |
|
Front axle swinging angle |
° |
±15 | |
|
Articulated steering angle |
° |
±25 | |
|
Forward |
ⅠGear |
Km/h |
5.0 |
|
ⅡGear |
Km/h |
8.7 | |
|
ⅢGear |
Km/h |
11.4 | |
|
ⅣGear |
Km/h |
19.3 | |
|
ⅤGear |
Km/h |
23.9 | |
|
ⅥGear |
Km/h |
39.0 | |
|
Backward |
ⅠGear |
Km/h |
5.0 |
|
ⅡGear |
Km/h |
11.4 | |
|
ⅢGear |
Km/h |
23.9 | |
|
Shovel blade |
Minimum height of ground clearance |
mm |
480 |
|
Maximum ground depth |
mm |
500 | |
|
Inclined angle |
° |
90 | |
|
Adjustment scope of scraping angle |
° |
36-66 | |
|
Rotary angle |
° |
360 | |
|
Length |
mm |
4270 | |
|
Engine |
Model |
|
Cummins 6BTA5.9 |
|
Rated rotational speed |
rpm |
2100 | |
|
Rated power |
Kw/hp |
128/175 | |
|
Drive part |
Model |
|
6WG200 |
|
|
Tyre pressure |
MPa |
0.26 |
|
Outer size of basic type(length X width X height |
mm |
9450X2595X3390 | |
