Asphalt Paver >> TOTA LT60B

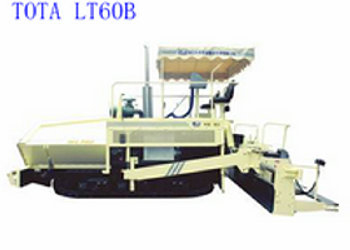

product01 Model : TOTA LT60B

- Max paving width:6000mm
- Max paving thickness:250mm
- Max Theoretic Productivity:400t/h
- Hopper Capacity:12t


Paving Width 3000-6000mm

Paving Thickness

20-250mm

Traveling Speed

0.96-2.86km/h

Paving Speed

2.00-3.60m/min

Road Arch

4%

Max Theoretic Productivity

400t/h

Hopper Capacity

12t

Max Gradability

20%

Screed

Hydraulic extension to 5.5m and mechanical Extension after

Screed basic Width

3000mm

Screed Heating Mode

Fuel heating and autoignition

Tamp

/

Tamp Scope

/

Tampering Number

/

Vibration Frequency

0-50Hz

Auger diameter

Φ350mm

Leveling Unit

Two longitudinal and transverse automatic units

Flatness

3mm/3mAsphalt

6mm/3mStabilized Soil

Overall Weight

12000-16400kg

Overall Size

6565*3210*3050mm

Engine Model

F6L913

Engine Type

6 cylinders wind-cooled

Rated Power

86kw/2300r/min

Driving Manner

Mechanical and hydraulic drive

Hydraulic Capacity

210 L

Fuel Capacity

190 L





-
