Fork Left >> TOTA CPCD35

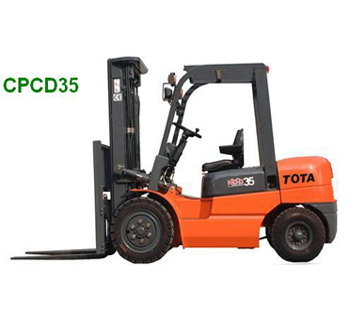

product01 Model : TOTA CPCD35

- Max lifting height:3000mm
- Rated load:3.5t
- Engine model: NB490BPG, Isuzu 4JG2(Optional)
- Mast height:2070mm.

Product description :
Breif introduction
1- Equipped with Zhejiang xinchang conventional engine 490BPG or environment-friendly engine A490BPG ,which performance is excellent and reliable.
2- Equipped with XCMG axle and JAC transmission,which combine with 490/498 engine perfectly.
3- The steering axle is made by JAC.The steering axle equips with transverse cylinder and anti-vibration mounting,which increases the machine performance,makes steering more flexible.
4- The advanced clear panel shows all performance message of the machine.
5- The structure is made from good steel. Its appearance looks beauty and strong.
6- The engine hood is made by high quality and intensity monolithic GRP.
7- New 36 litre tube-type water tank is quick heat dissipation, can't adhibit dust easily and is easy to clean.


 Model  Unit  CPC35
 Load capacity  Kg  3500
 Load center  Mm  500
 Overall Length(with fork)  Mm  3815
 Overall Length(without fork)  Mm  2745
 Overall Width  Mm  1225
 Overall Height  Mm  2070
 Lateral fork adjustment    250-1090
 Mast height (fork lowered)  Mm  2070
 Overall weight  Kg  4460
 Fork size L*W*T  Mm  1070*125*45
 Overhand (Front/Rear)  Mm  495/500
 Min ground clearance  Mm  125
 Engine type    Diesel
 Engine model    NB490BPG  Isuzu 4JG2
 Engine power  kw/rpm  42  44.9/2450
 Engine torque  N.m/rpm  174/1700~1900  186.3/1600-1800
 Wheel base  mm  1700
 Wheel thread (Front/Rear)  mm  970/970
 Tyre size (front)    28*9-15-12PR
 Tyre size (rear)    6.5-10-10PR
 Max lifting height  Mm  3000
 Max. height fork raised  Mm  4250
 Tilting angles (forward-backward)    6°/ 12°
 Lifting speeds(with/without load)  Mm/s  500/530
 Max lowering speeds(with/without load)  Mm/s  550/540
 Free lift  Mm  175
 Max Driving speeds(with/without load)  Km/h  18.5/20
 Min turning radius  Inside  Mm  200
 Outside  Mm  2465
 Max grade ability (with/without load)  %  31/22
 Min. right angle channel width  Mm  2950





-
