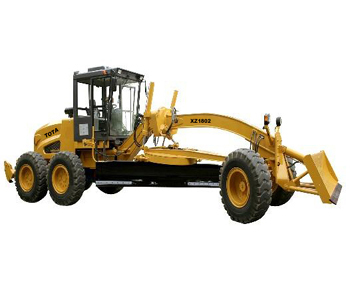

Motor Grader >> XZ1802


product01 Model : XZ1802

- Engine model:6BTA5.9-C132
- Rated power:132kw/180HP
- Blade width: 3965mm
- Operating weight:15500kg

Product description :
The self-propelled articulated motor grader is suitable for large-scale land leveling in foundation constructions. It can be used for ditching, grading, slope scraping-bulldozing, ripping, virgin land scarifying and snow-removing etc., which is modernized construction equipment of multi-functions and high-efficiency for high-class highway, railway, airport, harbors, dams, industrial ground and farmland. Whole engine hood and spacious operators cab for good visibility within 1mX1m distance, ease to maintain and operate. Torque converter and power-shift gearbox is operated electro-hydraulically; all the instruments and warning lights are indicated


Type Unit XZ1802

Mass of entire machine (without attachment)

kg

15500

Load of front axle

kg

4500

Load of rear axle

kg

11000

Front and rear axle base

mm

6420

Wheel base of medium and rear wheels

mm

1542

Wheel base

mm

2150

Minimum ground clearance

mm

410

Minimum turning radius

m

7.8

Maximum traction force

KN

≮84

Climbing ability

°

≥20

Pressure of working hydraulic system

MPa

18

Control pressure of transmission box

MPa

1.4-1.7

Front axle steering angle

°

±45

Front axle inclined angle

°

±17

Front axle swinging angle

°

±15

Articulated steering angle

°

±25

Forward

ⅠGear

Km/h

5.00

ⅡGear

Km/h

8.70

ⅢGear

Km/h

11.40

ⅣGear

Km/h

19.30

ⅤGear

Km/h

23.60

ⅥGear

Km/h

37.00

Backward

ⅠGear

Km/h

5.00

ⅡGear

Km/h

11.40

ⅢGear

Km/h

23.60

Shovel blade

Minimum height of ground clearance

mm

480

Maximum ground depth

mm

500

Inclined angle

°

90

Adjustment scope of scraping angle

°

36-66

Rotary angle

°

360

Length

mm

3965

Engine

Model



6BTA5.9-C132

Rated rotational speed

rpm

2200

Rated power

Kw/hp

132/180

Drive part

Model



6WG180



Tyre pressure

MPa

0.26

Outer size of basic type(length X width X height

mm

8850X2595X3390





-
