Fork Left >> TOTA CPCD100-C6/CP

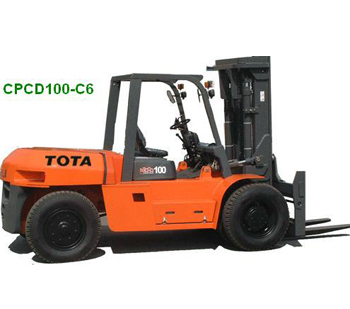

product01 Model : TOTA CPCD100-C6/CP

- Max lifting height:3000mm
- Rated load:10.0t
- Engine model:XICAI 6110BG/ Isuzu 6BG1
- Mast height:2500mm.

Product description:
Breif introduction
1,Equipped with Japanese Isuzu engine 6BG1 or XICAI 6110BG engine,which performance is excellent and reliable.
2, Equipped with XCMG axle and shaoxing qianjin transmission,which combine with ISUZU engine or XICAI engine perfectly.
3,The steering axle is made by JAC.The steering axle equips with transverse cylinder and anti-vibration mounting,which increases the machine performance,makes steering more flexible.
4,The advanced clear panel shows all performance message of the machine.
5- The structure is made from good steel. Its appearance looks beauty and strong.
6- The engine hood is made by high quality and intensity monolithic GRP.
7- The dual front tyre increases fifty percent bearing capacity and extends the using time.The rear tyre increases the distance of chassis and ground which increases the machine stability.So the machine can works on any road and working condition.


 Model  Unit  CPCD100-C6  CPCD100-W
 Load capacity  Kg  10000  10000
 Load center  Mm  600  600
 Length(without fork)  Mm  4260 4260
 Width  Mm  2245  2245
 Height  Mm  2585  2585
 Lateral fork adjustment  Mm  410-2140  410-2140
 Mast height (fork lowered)  Mm  2500  2500
 Overall weight  Kg  12460  12460
 Fork size L*W*T  Mm  1220*150*65  1220*150*65
 Front/Rear overhang –Fork  Mm  718/740  718/740
 Min ground clearance  Mm  210  210
 Engine type    Diesel  Diesel
 Engine model    XICAI 6110BG  Isuzu 6BG1
 Engine power  kw/rpm  81  84.5/2100
 Engine torque  N.m/rpm  353/1700  415/1600
 Cylinder number of engine    6  6
 Displacement  L  5.785  6.494
 Diesel tank capacity  L  105L  105L
 Wheel base  Mm  2800  2800
 Wheel thread (Front/Rear)  Mm  1470/1700  1470/1700
 Tyre size (front)    28*9-15-12PR  28*9-15-12PR
 Tyre size (rear)    6.5-10-10PR  6.5-10-10PR
 Max lifting height  Mm  3000  3000
 Max. height fork raised  Mm  5480  5480
 Height for Ware-retaining structure  Mm  1365  1365
 Tilting angles (forward-backward)    6°/ 12°  6°/ 12°
 Lifting speeds(with/without load)  Mm/s  360/380  360/380
 Max lowering speeds(with/without load)  Mm/s  550/540  550/540
 Free lift  Mm  210  210
 Max Driving speeds(with/without load)  Km/h  26/30  26/30
 Min turning radius  Mm  3900  3900
 Max. grade ability(with/without load)  %  15  15
 Min.right angle channel width  Mm  3040  3040
 Max. traction force (with/without load)  N  58000/31000  58000/31000





-
