Road Roller >> Double drum road roller >> LTC6/LTC6D

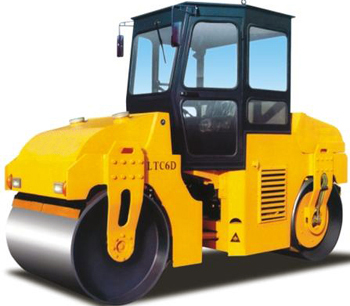

product01 Model : LTC6/LTC6D

- Engine model:4100AY/498
- Rated power:42kw
- Operating weight:6000kg
- Hydraulic vibratory

Product description :

LTC6 (6ton)) is a vibratory roller, LTC6D is a vibratory and oscillating roller, these rollers adopt the mechanical rear-wheel moving, rear-wheel hydraulic vibration (oscillation), and articulated steering, being equipped with solar screens and cabs for optional installing. Mud scrapers and electric sprinklers are installed in both front and rear wheels. Engine: 4100AY DI water-cooled diesel engine, a good start performance, low fuel consumption. Clutch: using Dongfeng automobile clutch, with hydraulic power assistance, easily manipulated. Gearbox: using the special roller gearbox that is made by the company, with two gears of forward and reverse respectively. Vibration system: using the gear pump and the motor produced by Parker Tejing Hydraulic (Tianjin )Co., Ltd.

LTC6D(6ton) Oscillating roller can be rearranged as a vibratory roller by the combination of the rotating oscillating wheel. And the oscillating roller can make the materials under compaction reach the required density by the principle of curlting and fro because it has only the horizontal force but not the vertical force. Therefore, the oscillating roller is particularly suitable for the places where oscillating can not be operated easily, such as nearby bridges and building.


MODEL



LTC6 LTC6D

Operating mass

kg

6000

6100

Static linear load

N/cm

232.4

232.4

Centrifugal force

KN

55



Centrifugal movement

KN.m



20.6

Oscillation frequency

Hz

46

43

Oriental vibration amplitude

mm

0.62



Oscillation amplitude





0.6

Travel speed

Km/h





1st gear



2.5

2.5

2nd gear



7.5

7.5

Grade ability

%

>20

>20

Drum diameter

mm

950

950

Rolling width

mm

1320

1320

Overall length



3650

3650

Overall width



1530

1530

Overall height

2650

3000

2650

Diesel model



4100AY/498

4100AY/498





-
