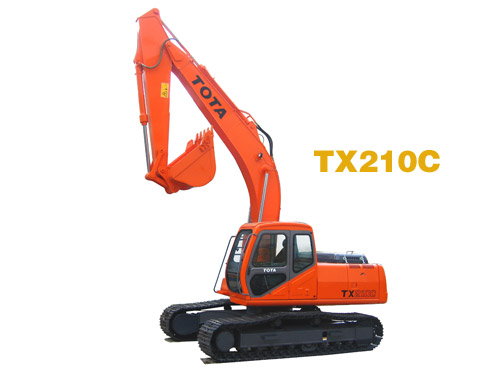

Crawler Excavator


Model:TX210

Brief introduction:
Standard bucket capacity:0.91/1.0m3;Operating weight:20.8t;Rated power:103kW(1900r/min),110kW(2150r/min).

Detailed date:

  TX210C Main specifications
(Description)
(Technical specifications)
TX210C
  Standard bucket capacity
0.91/1.0m3
Operating weight
20.8t
Gradeability
35°(70%)
(600mm)  Ground pressure
46kPa(0.47kgf/cm2
Digging force
Crowd force-arm
105/110kN
Breakout force-bucket
134/142kN
Engine
Model
A-6BG1T
Type
4
Four-stroke,water-cooled,direct injection,turbocharging
Displacement
6.494L(6494cc)
  Rated power
103kW(900r/min),110kW(2150r/min)
Rated speed
2150rpm
Max. torque
504.5N.m(1700r/min)
Capacity-Fuel tank
320L
Hydraulic system
Working pressure
34.3MPa
Flowrate
2×210L/min
Max. swing speed
13.2rpm
Travel speed(Low/high)
3.5/5.5km/h
Capacity-Hydraulic oil tank
230L
Dimensions
Overall length
9500mm
Overall width
2990mm
Overall height
2890mm
Overall width of upper structure
2625mm
Overall height of cab
2830mm
Counterweight clearance
1030mm
Height of engine cover
2270mm
Min. ground clearance
 450mm
Ground contact length
5250mm
Tail swing radius
2750mm
Distance between tumblers
3660mm
Track length
4460mm
Frame length
2990mm
Track gauge
2390mm
Length of standard crawler
 600mm
Working Range
Description
2.91m
Max. digging reach
9920mm
Max. digging reach on ground
9760mm
Max. digging depth
6670mm
Max. vertical digging depth
6050mm
Max. cutting height
9575mm
Max. dumping height
6790mm





-
