Road Roller >> Double drum road roller >> LTC08/210/212

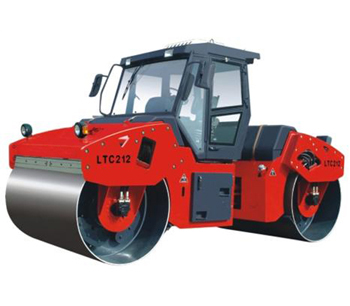

product01 Model : LTC08/210/212

- Engine model:6BT5.9/3.9
- Rated power:110kw/75kw
- Operating weight:8000/10000/12000
- Hydraulic Vibratory

Product description :

LTC212(12ton) LTC210(10ton) LTC208(8ton)
This roller uses hydraulic double-drum, double-drum vibration, frequency variation and articulated steering. Its standard cab is equipped with air conditioning, and the working seats can rotate 180 angle. The fork-foot frame provides good blank holder pressure. Engine: using Cummins 4BT3.9 water cooled turbocharged diesel engine. LTC21O and LTC212 use Cummins 6BT5.9 DI water-cooled turbo-charged engine or Cummins 4BT3.9 water cooled turbocharged diesel engine. Driving system: by the adoption of the U.S. Sauer Danfoss (sa ao ) or Germany REXOTH (li shi le ) piston pumps, motors, or Poclain hydraulic drive system, and ultrahigh-pressure pipe and pipe joints are products of Italy ALFAGOMMA. Vibration system: adopting the U.S. Sauer Danfoss (sa ao ) or Germany REXOTH (li shi le ) piston pumps, motors, the ultrahigh-pressure pipe with converting frequency &litude and pipe joints are products of Italy ALFAGOMMA. For the vibrating wheel technology, the German BOMAG (bao ma) BW160A and BW202AD roller vibration system are chosen. Articulated frame: being equipped with crab-type mechanism with 170mm dislocation of rear and front wheels; using the rolling disc point axis. Hydraulic components are the products by the U.S. Sauer and Germany REXROTH.


MODEL



LTC212 LTC210/LTC208

Operating mass

kg

12000

10000/8000

Static linear load

N/cm

286

238/231

From of frame



Fork-type

Fork-type

Crabwise movement distance

mm

±170

±170

Vibration amplitude

mm





High amplitude



0.8

0.8/0.67

Low amplitude



0.4

0.4/.34

Vibration frequency

Hz





High amplitude



40

40/45

Low amplitude



46

46/50

Centrifugal force

KN





High amplitude



160x2

115x2/90x2

Low amplitude



90x2

85x2/69x2

Travel speed

Km/h

0-12

0-11.1

Turning speed

mm

5605

5605

Grade ability

%

40

40

Steering angle

°

±35

±35

Drum diameter

mm

1350

1350/1150

Drum width

mm

2100

2100/1730

Wheelbase

mm

3717

3717/3217

Overall length



5062

5062/4558

Overall width



2250

2250/1840

Overall height



3000

3000/2674

Diesel model



CUMMINS6BT5.9

CUMMINS 4BT3.9

Diesel power

KW

110

75

Diesel speed

r/min

2300

2300/2200





-
