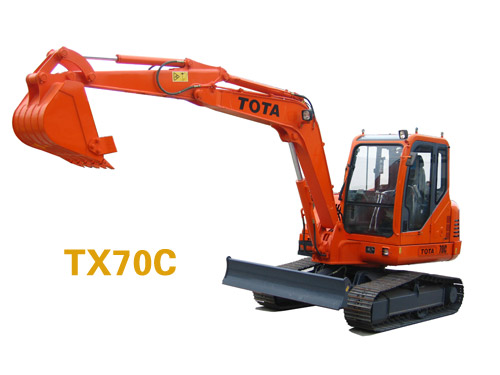

Crawler Excavator
Model：TX70
Brief introduction：
Standard bucket capacity：0.23m3；Operating weight：6.83t；Rated power：46kW.
Detailed date：
|
TX70C TX70C Main specifications | ||
|
（Description） |
（Technical specifications） | |
|
TX70C | ||
|
Standard bucket capacity |
0.23m3 | |
|
Operating weight |
6.83t | |
|
Gradeability |
35°（70%） | |
|
（400mm） Ground pressure |
0.34kgf/cm2 | |
|
Digging force |
Crowd force-arm |
26.1kN |
|
Breakout force-bucket |
34.4kN | |
|
Engine |
Model |
4TNV98L |
|
Rated power |
46kW（NET42.5） | |
|
Rated speed |
2200rpm | |
|
Capacity-Fuel tank |
120L | |
|
Hydraulic system |
Working pressure |
21MPa |
|
Flowrate |
2×62.6L/min | |
|
Max. swing speed |
10.6rpm | |
|
Travel speed（Low/high） |
2.5/4.2km/h | |
|
Capacity-Hydraulic oil tank |
70L | |
|
Dimensions | ||
|
Overall length |
6180mm | |
|
Overall width |
2050mm | |
|
Overall height |
2560mm | |
|
Overall width of upper structure |
1820mm | |
|
Overall height of cab |
2500mm | |
|
Counterweight clearance |
700mm | |
|
Height of engine cover |
1690mm | |
|
Min. ground clearance |
415mm | |
|
Length of tail |
1685mm | |
|
Tail swing radius |
1835mm | |
|
Distance between tumblers |
2120mm | |
|
Track length |
2685mm | |
|
Frame length |
2050mm | |
|
Track gauge |
1650mm | |
|
Length of standard crawler |
400mm | |
|
Blade height |
385mm | |
|
Height of lift up blade |
420mm | |
|
Depth of lower blade |
550mm | |
|
Working Range | ||
|
Description |
1.6m（） | |
|
Max. digging reach |
6150mm | |
|
Max. digging reach on ground |
6050mm | |
|
Max. digging depth |
3800mm | |
|
（8＇） Max. digging depth（8＇） |
3405mm | |
|
Max. vertical digging depth |
3205mm | |
|
Max. cutting height |
5810mm | |
|
Max. dumping height |
3960mm | |
|
Min. slew radius |
2355mm | |
