Fork Left >> TOTA CPCD70-C6/CPC

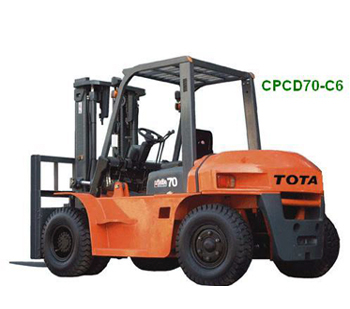

product01 Model : TOTA CPCD70-C6/CPC

- Max lifting height:3000mm
- Rated load:7.0t
- Engine model:XICAI 6110BG/
- Mast height:2500mm.

Product description:
Breif introduction
1- Equipped with Japanese Isuzu engine 6BG1 or XICAI 6110BG engine,which performance is excellent and reliable.
2- Equipped with XCMG axle and shaoxing qianjin transmission,which combine with ISUZU engine or XICAI engine perfectly.
3- The steering axle is made by JAC.The steering axle equips with transverse cylinder and anti-vibration mounting,which increases the machine performance,makes steering more flexible.
4- The advanced clear panel shows all performance message of the machine.
5- The structure is made from good steel. Its appearance looks beauty and strong.
6- The engine hood is made by high quality and intensity monolithic GRP.
7- The dual front tyre increases fifty percent bearing capacity and extends the using time.The rear tyre increases the distance of chassis and ground which increases the machine stability.So the machine can works on any road and working condition.Specification


 Model  Unit  CPCD70-C6  CPCD70-W
 Load capacity  Kg  7000  7000
 Load center  Mm  600  600
 Overall Length(with fork)  Mm  3573  5100
 Overall Width  Mm  1995  2050
 Overall Height  Mm  2450  2510
 Lateral fork adjustment  Mm  300-1835
 Mast height (fork lowered)  Mm  2500
 Overall weight  Kg  10000  10000
 Fork size L*W*T  Mm  1220*150*60  1500X150X75
 Front Overhand  Mm  590  660
 Min ground clearance  Mm  200
 Engine type    Diesel  Diesel
 Engine model    XICAI 6110BG  6102BG-A6B
 Engine power  kw/rpm  81/2200 73/2200
 Engine torque  N.m/rpm  353/1700  353/1700
 Cylinder number of engine    6
 Displacement  L  5.785
 Diesel tank capacity  L  140L
 Wheel base  Mm  2250  2250
 Wheel thread (Front/Rear)  Mm  1470/1700  1470/1520
 Tyre size (front)    8.25-15-14PR  4-8.25-20-14PR
 Tyre size (rear)    8.25-15-14PR  2-8.25-15-14PR
 Max lifting height  Mm  3000  3000
 Max. height fork raised  Mm  4420
 Tilting angles (forward-backward)    6°/ 12°   8°/ 10°
 Max. Lifting speeds(with/without load)  Mm/s  325/380  325/380
 Max lowering speeds(with/without load)  Mm/s  600/300  600/300
 Max. drawbar pull(with load)  kg  52430
 Free lift  Mm  205
 Max Driving speeds(with/without load)  Km/h  26/28  27.5/25.6
 Min turning radius (Outside)  Mm  3400  3400
 Max. grade ability (with load) %   24  20
 Min. right angle channel width  Mm  3000





-
