Road Roller >> Single drum road roller >> LTS214H

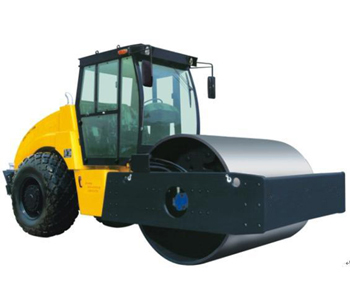

product01 Model : LTS214H

- Engine model:YC6108G
- Rated power:85kw
- Operating weight:14000kg
- Hydraulic single drive

Product description:
LTS214H(14ton)The machine is super heavy-duty vibratory roller, possesses a great working mass and strong centrifugal force. It is the best compaction equipment of high quality and high effect in the large-scale mechanized construction. This machine is suitable for non-cohesive materials, such as graves, macadam, macadam-aggregate mixtures and sandy soil etc. the machine is an ideal equipment for expressway, mining road, embankment, sea port and industrial sites. Engine:LTS214H uses Yuchai YC6108G diesel engine. Cummins 6BT5.9 turbocharged DI water-cooled diesel engine is optional. Driving system: by the adoption of the U.S. Sauer Danfoss (sa ao ) or Germany REXOTH (li shi le ) piston pumps, motors, or Poclain hydraulic drive system, the single control rod can manipulate the rollers moving forward backward as well as speed.


MODEL



LTS214H

Operating mass

Kg

14000

Static linear load

N/cm

342

Vibrating amplitude

Mm

1.8/0.9

Vibrating frequency

Hz

29/35

Centrifugal force

KN

290/160

Travel speed

Km/h

12

Grade ability

%

30

Turning radius

mm

6500

Overall dimension

mm

5860X2280X3020

Vibration round width

mm

2100

Wheelbase

mm

3160

Ground clearance

mm

472

Diesel power

kw

85KW

Diesel model



YC6108G





-
