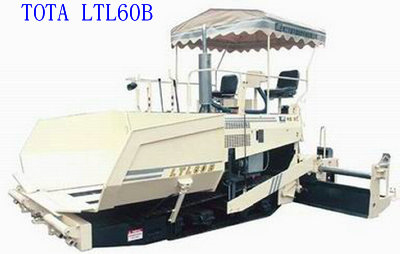

Asphalt Paver >> TOTA LTL60B
Model ： TOTA LTL60B
- Max paving width:6000mm
- Max paving thickness:250mm
- Max Theoretic Productivity:220t/h
- Hopper Capacity:10t
| Paving Width | 2500-6000mm |
|
Paving Thickness |
10-250mm |
|
Traveling Speed |
1.55-4.62km/h |
|
Paving Speed |
2.03-6.07m/min |
|
Road Arch |
4% |
|
Max Theoretic Productivity |
220t/h |
|
Hopper Capacity |
10t |
|
Max Gradability |
20% |
|
Screed |
Hydraulic extension to 4.5m and mechanical Extension after |
|
Screed basic Width |
2500mm |
|
Screed Heating Mode |
Fuel heating and autoignition |
|
Vibration Frequency |
0-50Hz |
|
Auger diameter |
Φ340mm |
|
Leveling Unit |
Two longitudinal units |
|
Flatness |
3mm/3m（Asphalt） |
|
Overall Weight |
11000-12000kg |
|
Overall Size |
5740*4534*2995mm |
|
Engine Model |
DEUTZ Technology F4L912 |
|
Engine Type |
4 cylinders wind-cooled |
|
Rated Power |
46kw/2000r/min |
|
Driving Manner |
Mechanical and hydraulic drive |
|
Hydraulic Capacity |
100 L |
|
Fuel Capacity |
118L |
