Fork Left >> TOTA CPCD50-C6/CPC

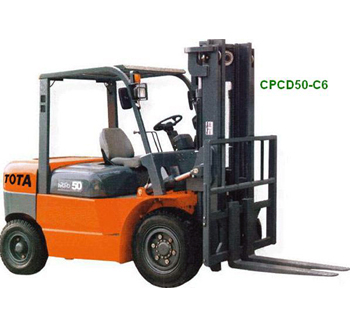

product01 Model : TOTA CPCD50-C6/CPC

- Max lifting height:3000mm
- Rated load:5.0t
- Engine model:XICAI 6110BG/Isuzu 6BG1
- Mast height:2500mm.


 Model  Unit CPCD50-C6  CPCD50-W
 Load capacity  Kg  5000  5000
 Load center  Mm  600  600
 Overall Length(without fork)  Mm  3440  3440
 Overall Width  Mm  1995  1995
 Overall Height  Mm  2450  2450
 Lateral fork adjustment  Mm  300-1835  300-1835
 Mast height (fork lowered)  Mm  2500 2500
 Overall weight  Kg  7980  7980
 Fork size L*W*T  Mm  1220*150*60  1220*150*55
 Front Overhand-fork  Mm  590  590
 Min ground clearance  Mm  200  200
 Engine type    Diesel  Diesel
 Engine model    XICAI 6110BG  Isuzu 6BG1
 Engine power  kw/rpm  81  82/2000
 Engine torque  N.m/rpm  353/1700  415/1400-1600
 Cylinder number of engine    6  6
 Displacement  L  5.785  6.494
 Diesel tank capacity  L  140L  140L
 Battery voltage/Capacity  V/AH  24/80  24/80
 Wheel base  Mm  2250  2250
 Wheel thread (Front/Rear)  Mm  1470/1700  1470/1700
 Wheel (Front x Rear)    4 x 2  4 x 2
 Tyre size (front)    8.25-15-14PR  8.25-15-14PR
 Tyre size (rear)    8.25-15-14PR  8.25-15-14PR
 Front/Rear axle(with load)  Kg  11840/1320  11840/1320
 Front/Rear axle(without load)  Kg  4280/3900  4280/3900
 Max lifting height  Mm  3000  3000
 Max. height fork raised  Mm  4420  4420
 Tilting angles (forward-backward)    6°/ 12°  6°/ 12°
 Max. Lifting speeds(with/without load)  Mm/s  545/590  500/590
 Max lowering speeds(with/without load)  Mm/s  600/300  600/300
 Max. drawbar pull(with/without load)  N  53400  54000
 Free lift  Mm  190  190
 Max Driving speeds(with/without load)  Km/h  27/28  27/30
 Min turning radius (Outside)  Mm  3300  3300
 Max. grade ability(with/without load)  %  32/19  37/19
 Min.right angle channel width  Mm  2960  2960





-
