Fork Left >> TOTA CPCD60-C6/CPC

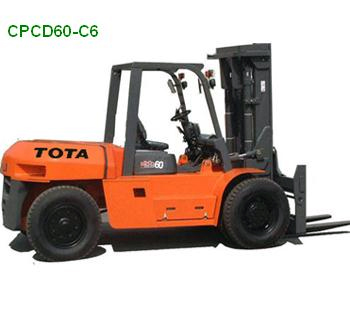

product01 Model : TOTA CPCD60-C6/CPC

- Max lifting height:3000mm
- Rated load:6.0t
- Engine model:XICAI 6110BG/Isuzu 6BG1
- Mast height:2500mm.


 Model  Unit CPCD60-C6   CPCD60-W
 Load capacity  Kg  6000  6000
 Load center  Mm  600  600
 Overall Length(without fork)  Mm  3573  3573
 Overall Width Mm  1995  1995
 Overall Height  Mm  2450  2450
 Lateral fork adjustment  Mm  300-1835  300-1835
 Mast height (fork lowered)  Mm  2500  2500
 Overall weight  Kg  9040  9040
 Fork size L*W*T  Mm  1220*150*60  1220*150*60
 Front Overhand  Mm  590  590
 Min ground clearance  Mm  200  200
 Engine type    Diesel  Diesel
 Engine model    XICAI 6110BG  Isuzu 6B61
 Engine power  kw/rpm  81 82/2000
 Engine torque  N.m/rpm  353/1700  415/1400-1600
 Cylinder number of engine    6  6
 Displacement  L  5.785  6.94
 Diesel tank capacity  L  140L  140L
 Front axle (with/without load)  Kg  13050/1590  13050/1590
 Rear axle (with/without load)  Kg  3880/4760  3880/4760
 Wheel base  Mm  2250  2250
 Wheel thread (Front/Rear)  Mm  1470/1700  1470/1700
 Wheel (Front/Rear)    4 X 2  4 X 2
 Tyre size (front)    8.25-15-14PR  8.25-15-14PR
 Tyre size (rear)    8.25-15-14PR  8.25-15-14PR
 Max lifting height  Mm  3000  3000
 Max. height fork raised  Mm  4420  4420
 Max. drawbar pull  Kg  53400  54000
 Tilting angles (forward-backward)    6°/ 12°  6°/ 12°
 Lifting speeds(with load/without load)  Mm/s  395/420  500/590
 Max lowering speeds(with/without load)  Mm/s  600/300  600/300
 Free lift  Mm  160  160
 Max Driving speeds(with/without load)  Km/h  26/28  27/30
 Min turning radius (Outside)  Mm  3400  3400
 Slope-climbing gradient(with/without load)  %  15  33
 Min. right angle channel width Mm   3000  3000





-
