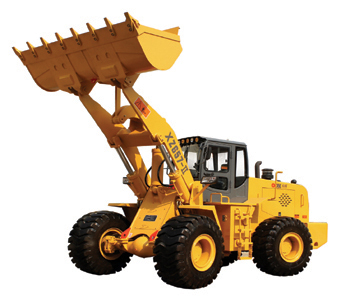

Wheel Loader >> XZ657-II


product01 Model : XZ657-II

- New appearance design
- Dual-pump-converging technology
- Individual hydraulic oil cooling system
- Prefix AC and Ajustable Steering pump

Main Technical Specification :
1.New appearance design
2.Dual-pump-converging technology
3.Individual hydraulic oil cooling system
4.Prefix AC and Ajustable Steering pump
5.Pilot Control


DESCRIPTIONS Unit XZ657-II

Rated load

kg

5.0 t

Operating weight

kg

17.1 t

Capacity of bucket

M3

2.7-3.3

Overall length

mm

7980

Overall width

mm

2889

Overall height

mm

3573

Wheel base

mm

3200±15

Tread width

mm

2280±10

Max. dumping height

mm

3150±20

Dumping reach

mm

1220±20mm

Traveling speed

Forward 1st gear

Km/h

12

Forward 2st gear

Km/h

36

Reverse 1st gear

Km/h

16

Max. grade ability

Deg

28

Max.Breakout force

kN

≥145

Max.Traction Force

kN

≥145

Min. ground clearance

mm

460±20

Lifting time of bucket

sec

≤6

Total cycling time

sec

≤11



Diesel engine

Model



WD10G220E11

Rated power

kW/rpm

162

Max. torque

N.m

843N.m/1500r/min

Rate fule consumption rate

g/kWh

≤215

Specification of tyres



23.5-25





-
