workover rig >> zj30
Model ： zj30
Description :
- Mast, w/ manual tong couter weighter, monkey board, aux.pulleys, etc
- Substructure ZZT 180
| Fahad Yahya Naji Askar Est. | ||||||||

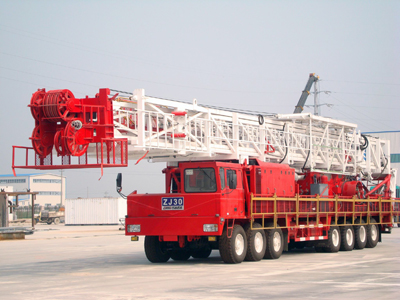

| ZJ30/1700CZ Truck-mounted Drilling Rig | ||||||||
| Seri. No. | NO. | DESCRIPTION | SPECIFICATIONS | MAIN PARAMETERS | UNIT | QTY | QTY. | REMARK |
| Main equipments | 1 | Mast, w/ manual tong couter weighter, monkey board, aux.pulleys, etc | JJ180/36 | Rated load:1800kN | set | 1 | 1 | |
| Drill pipe capacity:2500m(5″drill pipe) | ||||||||
| Service height：36m | ||||||||
| 2 | Substructure | ZZT 180 | Rated load：1800kN | set | 1 | 1 | ||
| Height： 5m or 6 M | ||||||||
| 3 | Crown | TC-180 | Rated load:1800kN | set | 1 | 1 | ||
| Sheave no:6 | ||||||||
| Applicable line diameter:29mm | ||||||||
| 4 | Traveling Block | YG180 | Rated load:1800kN | set | 1 | 1 | ||
| Sheave no:5 | ||||||||
| Applicable line Diameter:32mm | ||||||||
| 5 | Hook | YG180 | Rated load:1800kN | set | 1 | 1 | ||
| 6 | Swivle | SL-225 | Rated load:2250kN | set | 1 | 1 | ||
| Tried/work pressure：35MPa | ||||||||
| Washpipe diameter:75mm | ||||||||
| 7 | Hoist(main frame) | Rated load:1700KN | set | 1 | 1 | |||
| Generator: CAT3406 2set | ||||||||
| Torque converter：TC580 2 sets | ||||||||
| Auxiliary brake:WCB324 brake pads | ||||||||
| Master cylinder, tong hydro cylinder(2sets) | ||||||||
| Hydraulic gear box, underframe, bailer | ||||||||
| Shifts:5 forwards 1 reverse | ||||||||
| 8 | Rotary Table, c/w mast bushing, bushing lifting hook. | ZP275 | Dead weight:4500kN | set | 1 | 1 | ||
| Maximum through diameter:698.5mm | ||||||||
| Center distance: 1353mm | ||||||||
| The Max. rotate speed：300r/min | ||||||||
| Maxmium Operating torque ：27500N.m | ||||||||
| Transmission gear and chain box ZX140A/B | ||||||||
| 9 | Ramp | set | 1 | |||||
| 10 | Hydraulic cathead | YM-10-I | Max work pressure:16MPa | set | 1 | |||
| Delivery volume:120L/min | ||||||||
| 11 | Escape slider | Glide slope is 45° | pair | 1 | 1 | |||
| 12 | Ladders | Check-board,angle is 45-50 | pic | 2 | 2 | |||
| 13 | Mud umbrella | set | 1 | |||||
| 14 | Digital anti-collision Crown saver, rubber wood with wire netting. | set | each | 1each | ||||
| 15 | Hydraulic hoist | YJ3B | Rated load:30kN | set | 1 | 1 | ||
| YJ5B | Rated load:50kN | set | 1 | 1 | ||||
| Power system | 1 | Diesel engine | C12V190ZLP | Rated power：882kw | set | 2 | 2 | |
| 2 | Transmission device | set | 2 | 2 | ||||
| 3 | Mud pump | 3NB-1000 | Output power：2*735KW | set | 2 | 2 | ||
| 4 | Generator( with generator house) |
VolvoHC44AF1 | Output power：300KW | set | 2 | 2 | ||
| Mud tank system | 1 | Shale Shaker | Output power：3.6kW*2 | set | 1 | 2 | ||
| Disposal capacity： 800GPM | ||||||||
| 2 | Mud cleaner | ZQJ254*2 | Hopper measurement*quantity:254mm*2 |
set | 1 | 1 | ||
| Disposal capacity： 800GPM | ||||||||
| 3 | centrifugal pump | LW450X842N | Disposal capacity： 40 cubic meters / hour | set | 1 | 1 | ||
| 4 | Agitator | NJ-7.5 | Dia. of vane：600mm | set | 4 | 4 | ||
| 5 | High pressure manifold | Rated WP：35MPa(5000Psi) | set | 1 | 1 | |||
| 6 | Mud tank | 50m3 | Total capacity：200m3 | pic | 4 | 4 | ||
| 7 | Reserve tank | 40m3 | Total capacity：80m3 | pic | 2 | 2 | ||
| Electrical system | 1 | Air compressor | Discharge capacity：5.6m3/min | set | 1 | 1 | ||
| Discharge capacity：3m3/min | set | 1 | 1 | |||||
| 2 | Air purifier system | set | 1 | |||||
| 3 | MCC | DJKF | 7500*2900*2900 | set | 1 | 1 | ||
| 4 | Cable tray | 7000*1200*120 | set | 1 | 1 | |||
| 5 | Well site explosion electric circuit | set | 1 | 1 | ||||
| 6 | Air-supplying hoses, fittings | set | 500 | 1 | ||||
| Oil, air, water system | 1 | pressurizing diesel tank | Capacity：40m3 | set | 1 | 1 | ||
| 2 | water&oil supplying system, c/w water pumps, hoses, fittings | set | 1 | 1 | ||||
| 3 | Water tank | TZSG-100 | Capacity：100m3 | set | 1 | 1 | ||
| Drilling instrumentation | 1 | drilling instrumentation | set | 1 | 1 | |||
| Monitoring system | 1 | Rig site communication apparatus | Computer, printers, Communications equipment | set | 1 | 1 | ||
| 2 | Deadline anchor | set | 1 | 1 | ||||
| 3 | Shut-in warning sign | 900*800 | pic | 1 | 1 | |||
| Well site facilities | 1 | duty house | 1400*1200*2000 | set | 1 | 1 | ||
| 2 | Mechnic workshop | 10000*2900*2900 | set | 1 | 1 | |||
| 3 | Mud testing house | 10000*2900*2900 | set | 1 | 1 | |||
| 4 | Material house | 10000*2900*2900 | set | 2 | 2 | |||
| 5 | Oxyacetylene cutter | set | 1 | 1 | ||||
| 6 | Pipe rack | Lenghth: 10m | pic | 4 | 4 | |||
| 7 | Wireline dragging device | pic | 1 | 1 | ||||
| 8 | DP level slide | 8500*2300*1000 | set | 1 | 1 | |||
| 9 | Hydraulic cutter | pic | 1 | 1 | ||||
| 10 | Welding machine | AX-300 | set | 1 | 1 | |||
| Living facility | 1 | Potable water tank | 8500*2200*1300 | Capacity: 20m3 | pic | 1 | 1 | |
| Emergency facilities | 2 | Explosion-proof emergency light | Portable | Working voltage:24V Lifttime:more than 1200hours | pic | 2 | 2 | |
| 4 | Escape device for monkey board | set | 1 | 1 | ||||
| 6 | Warnig sign | set | 1 | 1 | ||||
| Fire control equipment | 1 | Fire house, c/w dry power fire extinguisher, fire hook, fire buckets, fire hoses, etc. | 8000*2780*3000 | set | 1 | 1 | ||
| Safety appliance | 1 | Latch-type hook | DJ-8 | Lift rated load:80kN | pic | 2 | 2 | |
| 2 | Fall protection | TS-30 | set | 1 | 1 | |||
| TS-20 | set | 1 | 1 | |||||
| 3 | Safety chains for high pressure hoses | ST*1m | Blowdown pipe line、pump line、extra heavy pipe line、uesd in drilling hose |
set | 4 | 4 | ||
| 4 | Thimble | Φ16-3m | Lift rated load: 200kN | pair | 4 | 4 | ||
| 5 | Nylon sling | Φ30-3m | Lift rated load: 250kN | pair | 4 | 4 | ||
| 6 | Earthing rod | Φ20*1200 | Copper core 1m w/ lugs | set | 30 | 30 | ||
| 7 | Rig moving slings | Φ19.5-8m | Lift rated load200kN, | set | 4 | 4 | ||
| Φ25-6m | Lift rated load200kN,sinking pump, drawwork |
set | 2 | 2 | ||||
| Well control equipment |
1 | Double ram BOP | 2FZ35-35 | set | 1 | 1 | ||
| 2 | Choke manifold | JG-35 | set | 1 | 1 | |||
| 3 | Kill manifold | YG-35 | set | 1 | 1 | |||
| 4 | Check valve | 5″ | One plunger-type, two flipper type | set | 3 | 3 | ||
| 5 | Manual blow valve | PFF103-35 | pic | 3 | 3 | |||
| 6 | Pipelines for well control | set | 1 | 1 | ||||
| 7 | Upper kelly cock | 630*631 | pic | 1 | 1 | |||
| 8 | Low kelly cock | 411*410 | pic | 2 | 2 | |||
| 9 | GNG hi-pressure apyrous | ID25mm*35MPa*10m | pic | 30 | 30 | |||
| 10 | Multi-purpose self sealing union | D20*35MPa | set | 10 | 10 | |||
| 11 | Quick coupling | D20*35MPa | set | 15 | 15 | |||
| 12 | Quick coupling | D20*35MPa | set | 15 | 15 | |||
| 13 | Drilling spool | 2FS35-35 | pic | 1 | 1 | |||
| 14 | BOP closing unit | FKQ640-6 | set | 1 | 1 | |||
| Drilling tools | 1 | Elevator Link | SH-1350 | pair | 1 | 1 | ||
| 2 | B type manual tong | Q89-299/75 | pic | 2 | 2 | |||
| 3 | DP Slips | 5″ | pic | 2 | 2 | |||
| 4 | DC Slips | WT8-9/360 | pic | 2 | 2 | |||
| 5 | DC Slips | WT51/2-7/360 | pic | 2 | 2 | |||
| 6 | Safety slips | 61/4″-7″ | pic | 2 | 2 | |||
| 7 | Safety slips | 8″-10″ | pic | 2 | 2 | |||
| 8 | Kelly bushing roller | 5１/４″ | pic | 1 | 1 | |||
| 9 | Small bushing(backing fork) | pic | 1 | 1 | ||||
| 10 | Bit breaker | Φ215.9mm | pic | 1 | 1 | |||
| Φ241.3mm | pic | 1 | 1 | |||||
| Φ311.1mm | pic | 1 | 1 | |||||
| Φ444.5mm | pic | 1 | 1 | |||||
| 11 | Mud bucket | pic | 2 | 2 | ||||
| 12 | kelly | 5 1/4″ | Length12.20 | pic | 1 | 1 | ||
| Miscellaneous | 1 | Power tong | Q10Y-M | Maximum work pressure:16.3MPa | set | 1 | 1 | |
| Delivery volume:114L/min | ||||||||
| 2 | Hydraulic casing tong& HPU |
TQ13 3/8″-35 | set | 1 | 1 | |||
| 3 | Rat hole | 9 5/8″×14m | pic | 1 | 1 | |||
| 4 | Mouse hole | 9 5/8″×11m | pic | 1 | 1 | |||
| 5 | Drilling line | Φ29mm | 500m | pic | 1 | 1 | ||
| 6 | Kelly spinner | Q/320623 AH03 | set | 1 | 1 | |||
| 7 | Doghouse |
3000*2000*2900 | set | 1 | 1 | |||
| 8 | Climbing aid device | JFH0.5/12 | Rated load:50kN | set | 1 | 1 | ||
| 9 | Rotary Horse | ID: 76.2mm WP: 35mPa | item | 1 | 1 | |||
| Coating | ||||||||
| Commissioning & testing | ||||||||
