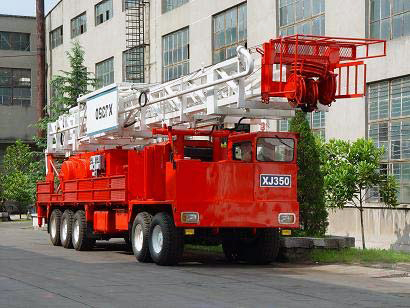

workover rig >> Xj350
Model ： Xj350
Description :
1- Products features
102.69ft (31.3m) double section mast, hydraulically raised and telescoped.
8x8 full drive chassis for XJ350 single-drum rig.
10x8 chassis for XJ350S double-drum rig.
Single operation platform hanged on the rear is available.
A rod hanger is available.
| Item | Model | Xj350 | |
| 1 | Service depth (2-7/8"UE tubing) ft(m) | 13120(4000) | |
| 2 | Workover depth: (2-7/8" DP) ft(m) | 10500(3200) | |
| 3 | (3-1/2" DP) ft(m) | 8530(2600) | |
| 4 | (4-1/2"DP) ft(m) | ||
| 5 | Nominal hook load lb (kn) | 134880(600) | |
| 6 | Max. hook load: lb (kn) | 202320(900) | |
| 7 | Rope line diameter: in(mm)/number | Φ1"(26)/6 | |
| 8 | Max. hook lifting speed: ft/s (m/s) | 4.33(1.32) | |
| 9 | Moving dimensions: ft | 56.43x9.19x13.71 | |
| 10 | Weight: lb(kg) | 83776(38000) | |
| 11 | Power system | CAT -3406B/C11 | |
| 12 | Engine power: hp(kw)(2100r/min) | 360(269)/385(287) | |
| 13 | Model of hydraulic transmission | HD4700 OFS | |
| 14 | Chassis driven | 8x8/10x8 | |
| 15 | Min. turning radius: ft(m) | 98.43(30) | |
| 16 | Min. ground clearance: mm/in | 13.39(340) | |
| 17 | Approach/departure angle/Max. grade ability | 36/18/32 | |
| 18 | Drawworks | Double drum (single drum) | |
| 19 | Drawworks power: hp | 350 | |
| 20 | Diameter of main drum: in (mm) | Φ16.89x37.99(Φ429x965) | |
| 21 | Main brake | Band | |
| 22 | Main brake cooling mode | Forced spraying water cooling | |
| 23 | Main drum auxiliary brake | 122 hydro brake | |
| 24 | Speeds of drawworks | 5 forward 1 reverse | |
| 25 | Derrick | Double section | |
| 26 | Derrick height: ft(m) | 102.69(31.3) | |
| 27 | Max. static load lb(kn) | 229296(1020) | |
| 28 | Wind speed: kts (km/h) | 60(110) | |
| 29 | Racking platform height ft (m) | 55.78,64.63(17,19) | |
| 30 | Control/lighting/electric circuit | 24V/220V/380V(China) | |
| 31 | Hydraulic/air pressure system psi (MPa) | 14/0.833-0.93(2002/119.12-133) | |
| 32 | Drill floor | DZ90/2.2-X | |
| 33 | Rotary table | ZP105 | |
| 34 | Traveling block/hook | YG110 | |
| 35 | Swivel | SL120 | |
