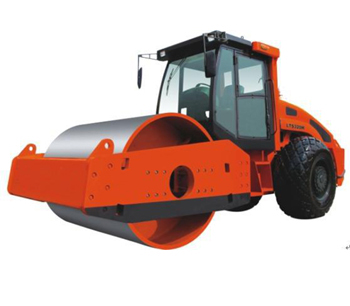

Road Roller >> Single drum road roller >> LTS322H

Model ： LTS322H

- Engine model:6BTA5.9
- Rated power:132kw
- Operating weight:22000kg
- Hydraulic single drive

Product description :
LTS322H（22ton） Adopt Cummins 6BTA5.9 DI water-cooled turbo-charged inter-cooled diesel engine. Driving System: by the adoption of the U.S. Sauer Danfoss (sa ao ) or Germany REXOTH (li shi le ) piston pumps, motors, or Poclain hydraulic drive system, the single control rod can manipulate the rollers moving forward backward as well as speed, which is simple and comfortable for the driver. EHV tube and pipe joints are Italy ALFAGOMMA products. Rear Axle: the rear axle with final planetary reducer specifically for rollers, which is made by the company. Braking system: with cutting-fuel braking system can automatically lock when the engine flameout or the failure of the hydraulic system happen, which guarantees the safety of driving.

Vibration System: Adopt the U.S. Sauer Danfoss (sa ao ) or Germany REXOTH (li shi le ) piston pumps, motors, the ultrahigh-pressure pipe with converting frequency& amplitude and the pipe joints are Italy ALFAGOMMA hydraulic tube and pipe joints. Articulated frame uses the rolling disc point axis, which provides reliable performance and longer service life.
