workover rig >> zj30


product01 Model ： zj30

Description :
- Mast, w/ manual tong couter weighter, monkey board, aux.pulleys, etc
- Substructure ZZT 180


Fahad Yahya Naji Askar Est.

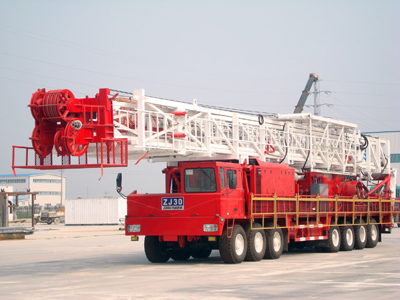

ZJ30/1700CZ Truck-mounted Drilling Rig
Seri. No. NO. DESCRIPTION SPECIFICATIONS MAIN PARAMETERS UNIT QTY QTY. REMARK
Main equipments 1 Mast, w/ manual tong couter weighter, monkey board, aux.pulleys, etc JJ180/36 Rated load:1800kN set 1 1
Drill pipe capacity:2500m(5″drill pipe)
Service height：36m
2 Substructure ZZT 180  Rated load：1800kN set 1 1
Height：    5m or 6 M
3  Crown  TC-180 Rated load:1800kN set 1 1
Sheave no:6
Applicable line diameter:29mm
4 Traveling Block YG180 Rated load:1800kN set 1 1
Sheave no:5
Applicable line Diameter:32mm
5 Hook YG180  Rated load:1800kN set 1 1
6 Swivle SL-225 Rated load:2250kN set 1 1
Tried/work pressure：35MPa
Washpipe diameter:75mm
7 Hoist(main frame)   Rated load:1700KN set 1 1
Generator: CAT3406 2set
Torque converter：TC580  2 sets
Auxiliary brake:WCB324 brake pads
Master cylinder, tong hydro cylinder(2sets)
Hydraulic gear box, underframe, bailer
Shifts:5 forwards 1 reverse
8 Rotary Table, c/w mast bushing, bushing lifting hook. ZP275 Dead weight:4500kN set 1 1
Maximum through diameter:698.5mm
Center distance: 1353mm
The Max. rotate speed：300r/min
 Maxmium Operating torque ：27500N.m
Transmission gear and chain box ZX140A/B
  9 Ramp     set   1
  10 Hydraulic cathead YM-10-I Max work pressure:16MPa set   1
Delivery volume:120L/min
  11 Escape slider   Glide slope is 45° pair 1 1
  12 Ladders   Check-board,angle is 45-50 pic 2 2
  13 Mud umbrella     set   1
  14 Digital anti-collision Crown saver, rubber wood with wire netting.     set each 1each
  15 Hydraulic hoist YJ3B Rated load:30kN set 1 1
YJ5B Rated load:50kN set 1 1
Power system 1 Diesel engine C12V190ZLP Rated power：882kw  set 2 2
2 Transmission device     set 2 2
3 Mud pump 3NB-1000 Output power：2*735KW set 2 2
4 Generator( with generator house)
 VolvoHC44AF1 Output power：300KW set 2 2
Mud tank system 1 Shale Shaker    Output power：3.6kW*2 set 1 2
Disposal capacity： 800GPM
2 Mud cleaner ZQJ254*2 Hopper measurement*quantity:254mm*2
 set 1 1
Disposal capacity： 800GPM
3 centrifugal pump LW450X842N Disposal capacity：  40 cubic meters / hour set 1 1
4 Agitator NJ-7.5 Dia. of vane：600mm set 4 4
5 High pressure manifold    Rated WP：35MPa(5000Psi) set 1 1
6 Mud  tank 50m3 Total capacity：200m3 pic 4 4
7 Reserve tank 40m3 Total capacity：80m3 pic 2 2
Electrical system 1 Air compressor   Discharge capacity：5.6m3/min  set 1 1
Discharge capacity：3m3/min set 1 1
2 Air purifier system     set   1
3 MCC DJKF 7500*2900*2900 set 1 1
4 Cable tray 7000*1200*120   set 1 1
5 Well site explosion electric circuit     set 1 1
6 Air-supplying hoses, fittings      set 500 1
Oil, air, water system  1 pressurizing diesel tank   Capacity：40m3   set 1 1
2 water&oil supplying system, c/w water pumps, hoses, fittings     set 1 1
3 Water tank TZSG-100 Capacity：100m3  set 1 1
Drilling instrumentation 1 drilling instrumentation     set 1 1
Monitoring system 1 Rig site communication apparatus   Computer, printers, Communications equipment set 1 1
2 Deadline anchor     set 1 1
3 Shut-in warning sign 900*800   pic 1 1
Well site facilities                                   1 duty house 1400*1200*2000   set 1 1
2 Mechnic workshop 10000*2900*2900   set 1 1
3 Mud testing house 10000*2900*2900   set 1 1
4 Material house 10000*2900*2900   set 2 2
5 Oxyacetylene cutter     set 1 1
6 Pipe rack   Lenghth: 10m  pic 4 4
7 Wireline dragging device     pic 1 1
8 DP level slide 8500*2300*1000   set 1 1
9 Hydraulic cutter     pic 1 1
10 Welding machine AX-300   set 1 1
Living facility 1 Potable water tank 8500*2200*1300 Capacity: 20m3  pic 1 1
Emergency facilities 2 Explosion-proof emergency light Portable Working voltage:24V Lifttime:more than 1200hours pic 2 2
4 Escape device for monkey board     set 1 1
6 Warnig sign     set 1 1
Fire control equipment 1 Fire house, c/w dry power fire extinguisher, fire hook, fire buckets, fire hoses, etc. 8000*2780*3000   set 1 1
Safety appliance 1 Latch-type hook DJ-8 Lift rated load:80kN pic 2 2
2 Fall protection TS-30   set 1 1
TS-20   set 1 1
3 Safety chains for high pressure hoses ST*1m Blowdown pipe line、pump line、extra heavy pipe line、uesd in drilling hose

 set 4 4
4 Thimble Φ16-3m Lift rated load: 200kN pair 4 4
5 Nylon sling Φ30-3m Lift rated load: 250kN pair 4 4
6 Earthing rod Φ20*1200 Copper core 1m w/ lugs set 30 30
7 Rig moving slings Φ19.5-8m Lift rated load200kN, set 4 4
Φ25-6m Lift rated load200kN,sinking pump, drawwork

 set 2 2
Well control equipment
 1 Double ram BOP 2FZ35-35   set 1 1
2 Choke manifold JG-35   set 1 1
3 Kill manifold YG-35   set 1 1
4 Check valve 5″ One plunger-type, two flipper type set 3 3
5 Manual  blow valve PFF103-35   pic 3 3
6 Pipelines for well control     set 1 1
7 Upper kelly cock 630*631   pic 1 1
8 Low kelly cock 411*410   pic 2 2
9 GNG hi-pressure apyrous ID25mm*35MPa*10m   pic 30 30
10 Multi-purpose self sealing union D20*35MPa   set 10 10
11 Quick coupling D20*35MPa   set 15 15
12 Quick coupling D20*35MPa   set 15 15
13 Drilling spool 2FS35-35   pic 1 1
14 BOP closing unit FKQ640-6   set 1 1
Drilling tools 1 Elevator Link SH-1350   pair 1 1
2 B type manual tong Q89-299/75   pic 2 2
3 DP Slips 5″   pic 2 2
4 DC Slips WT8-9/360   pic 2 2
5 DC Slips WT51/2-7/360   pic 2 2
6 Safety slips 61/4″-7″   pic 2 2
7 Safety slips 8″-10″   pic 2 2
8 Kelly bushing roller  5１/４″   pic 1 1
9 Small bushing(backing fork)     pic 1 1
10 Bit breaker  Φ215.9mm   pic 1 1
Φ241.3mm   pic 1 1
Φ311.1mm   pic 1 1
Φ444.5mm   pic 1 1
11 Mud bucket     pic 2 2
12 kelly  5 1/4″ Length12.20 pic 1 1
Miscellaneous 1 Power tong Q10Y-M Maximum work pressure:16.3MPa set 1 1
Delivery volume:114L/min
2 Hydraulic casing tong& HPU

 TQ13 3/8″-35   set 1 1
3 Rat hole   9 5/8″×14m pic 1 1
4 Mouse hole   9 5/8″×11m pic 1 1
5 Drilling line Φ29mm 500m pic 1 1
6 Kelly spinner Q/320623 AH03   set 1 1
7 Doghouse
 3000*2000*2900   set 1 1
8 Climbing aid device JFH0.5/12 Rated load:50kN set 1 1
9 Rotary Horse   ID: 76.2mm　WP: 35mPa item 1 1
Coating
Commissioning & testing





-
