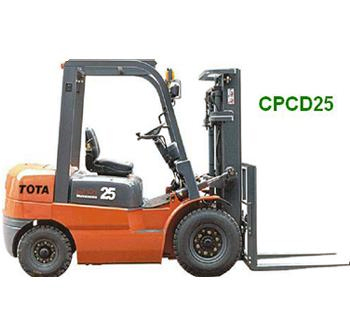

Fork Left >> TOTA CPCD25
Model ： TOTA CPCD25
- Max lifting height:3000mm
- Rated load：2.5t
- Engine model:A490BPG, Isuzu C240PKJ(Optional)
- Mast height:1995mm
| Model | Unit | CPC25 | ||
| Load capacity | Kg | 2500 | ||
| Load center | Mm | 500 | ||
| Overall Length(with fork) | Mm | 3650 | ||
| Overall Length(without fork) | Mm | 2580 | ||
| Overall Width | Mm | 1160 | ||
| Overall Height | Mm | 2070 | ||
| Lateral fork adjustment | Mm | 245-1020 | ||
| Mast height (fork lowered) | Mm | 1995 | ||
| Overall weight | Kg | 3647 | ||
| Fork size L*W*T | Mm | 920*122*40 | ||
| Overhang (Front/Rear) | Mm | 450/430 | ||
| Min ground clearance | Mm | 110 | ||
| Engine type | Diesel | |||
| Engine model | A490BPG | Isuzu C240PKJ | ||
| Engine power | kw/rpm | 37/2600 | 34.5/2500 | |
| Engine torque | N.m/rpm | 148/1700~1900 | 139/1800 | |
| Wheel base | Mm | 1600 | ||
| Wheel thread (Front/Rear) | Mm | 970/970 | ||
| Tyre size (front) | 7. | |||
| Tyre size (rear) | 6. | |||
| Max lifting height | Mm | 3000 | ||
| Max. height fork raised | Mm | 4030 | ||
| Tilting angles (forward-backward) | 6°/ 12° | |||
| Lifting speeds(with/without load) | Mm/s | 530/550 | ||
| Max lowering speeds(with/without load) | Mm/s | 540/550 | ||
| Free lift | Mm | 240 | ||
| Max Driving speeds(with/without load) | Km/h | 17.5/20 | ||
| Min turning radius | Inside | Mm | 160 | |
| Outside | Mm | 2230 | ||
| Max. grade ability(with/without load | % | 31/22 | ||
| Min. right angle channel width | Mm | 2710 | ||
